MW4IC2230NBR1

Wideband Integrated Power Amplifier, 26 to 28 Volts, 1600 to 2400 MHz, 30W, TO-272

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.00~15.00

PartNumber:: MW4IC2230NBR1

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eima's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:MW4IC2230NBR1
US $13.00 - 15.00
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
M48Z08-100PC1

US $2.50 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

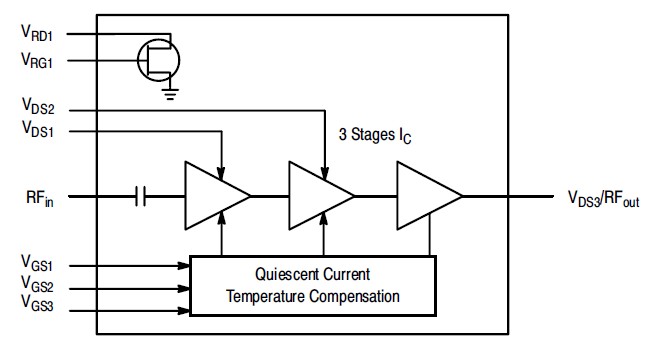

The MW4IC2230NB is a RF LDMOS Wideband Integrated Power Amplifier. It is designed for W-CDMA base station applications. It uses Freescale’s newest High Voltage (26 to 28 Volts) LDMOS IC technology and integrates a multi - stage structure. The MW4IC2230NB’s wideband on-chip design makes it usable from 1600 to 2400 MHz. The linearity performances cover all modulations for cellular applications: GSM, GSM EDGE, TDMA, CDMA and W-CDMA.

Parametrics

MW4IC2230NBR1 absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5, +65 Vdc; (2)Gate-Source Voltage, VGS: -0.5, +8 Vdc; (3)Storage Temperature Range, Tstg: -65 to +175 ℃; (4)Operating Channel Temperature, TJ: 200 ℃; (5)Input Power, Pin: 20 dBm.

Features

MW4IC2230NBR1 features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)On-Chip Matching (50 Ohm Input, DC Blocked, >5 Ohm Output); (3)Integrated Quiescent Current Temperature Compensation with Enable/Disable Function; (4)On-Chip Current Mirror gm Reference FET for Self Biasing Application; (5)Integrated ESD Protection; (6)200℃ Capable Plastic Package; (7)N Suffix Indicates Lead-Free Terminations. RoHS Compliant; (8)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
