Product Summary

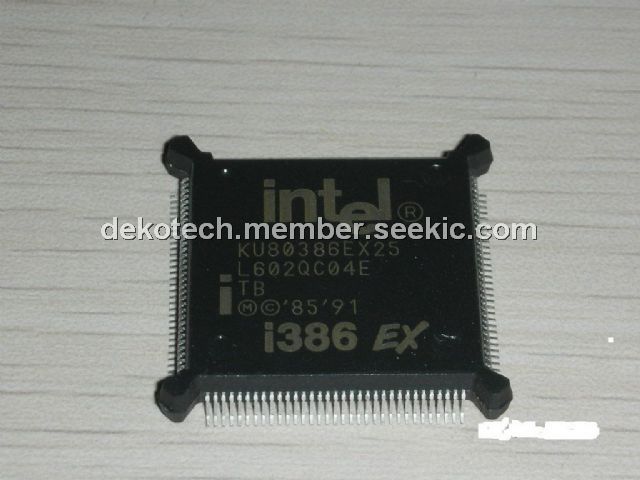

The KU80386EX25 microprocessor is a fully static, 32-bit processor optimized for embedded applications. Ii features low power and low voltage capabilities, integration of many commonly used DOS-typ peripherals, and a 32-bit programming architecture compatible with the large software base of Intel386 processors.

Parametrics

Absolute maximum ratings: (1)storage temperature: -65℃ to 150℃; (2)case temperature under bias: -65℃ to +110℃; (3)supply voltage with respect to VSS: -0.5v to 6.5v; (4)voltage on other pins: -0.5v to Vcc+0.5v.

Features

Features: (1)static Intel386 CPU core; (2)transparent power-management system architecture; (3)powerdown mode; (4)full 32-bit Internal arachitecture; (5)runs Intel386 architecture software in a cost effective 16-bit hardware environment; (6)high performance 16-bit data bus; (7)integrated memory management unit; (8)virtual 8086 mode allows execution of 8086 sofeware in a protected and paged system; (9)large uniform address space; (10)two package:132-pin PQF; 144-pin TQF.

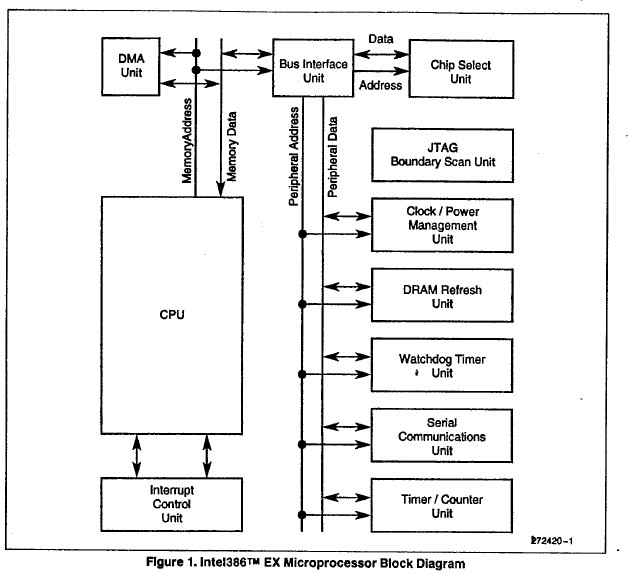

Diagrams

KU80386EXTB25
KU80386EXTB25

IC INT PROC 3.3V 25MHZ 132QFP
Data Sheet
Negotiable
KU80386EXTC25
KU80386EXTC25

IC INT PROC 5V 25MHZ 132QFP
Data Sheet
Negotiable
KU80386EXTC33
KU80386EXTC33

IC INT PROC 5V 33MHZ 132QFP
Data Sheet
Negotiable
KU80386SXTA25
KU80386SXTA25

IC MPU 32-BIT 5V 25MHZ 100-QFP
Data Sheet
0-1: $6.94
1-10: $6.31
10-100: $5.37
100-250: $4.89
250-500: $4.58
KU80386SXTA33
KU80386SXTA33

IC MPU 32-BIT 5V 33MHZ 100-QFP
Data Sheet
0-1: $6.94
1-10: $6.31
10-100: $5.37
100-250: $4.89
250-500: $4.58
KU80386SXTA40
KU80386SXTA40

IC MPU 32-BIT 5V 40MHZ 100-QFP
Data Sheet
0-1: $6.94
1-10: $6.31
10-100: $5.37
100-250: $4.89
250-500: $4.58
