Product Summary

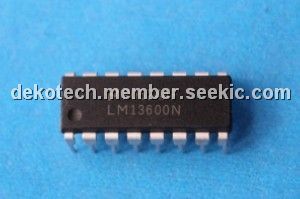

The LM13600N is a Dual Operational Transconductance Amplifier with Linearizing Diodes and Buffers. It consists of two current controlled transconductance amplifiers each with differential inputs and a push-pull output. The two amplifiers of the LM13600N shares common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The applications of the LM13600N include: Current-controlled amplifiers, Current-controlled impedances, Current-controlled filters, Current-controlled oscillators, Multiplexers, Timers, Sample and hold circuits.
Parametrics
LM13600N absolute maximum ratings: (1)Supply Voltage: 36 VDC or ±18V; (2)Power Dissipation TA = 25℃: 570 mW; (3)Differential Input Voltage: ±5V; (4)Diode Bias Current (ID): 2mA; (5)Amplifier Bias Current (IABC): 2mA; (6)Output Short Circuit Duration: Continuous; (7)Buffer Output Current: 20 mA; (8)Operating Temperature Range: 0℃ to +70℃; (9)DC Input Voltage: +VS to -VS; (10)Storage Temperature Range: -65℃ to +150℃.
Features
LM13600N features: (1)gm adjustable over 6 decades; (2)Excellent gm linearity; (3)Excellent matching between amplifiers; (4)Linearizing diodes; (5)Controlled impedance buffers; (6)High output signal-to-noise ratio.

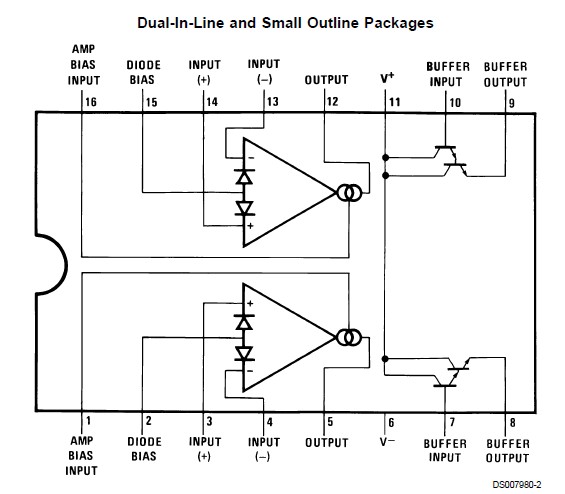

Diagrams
 |
