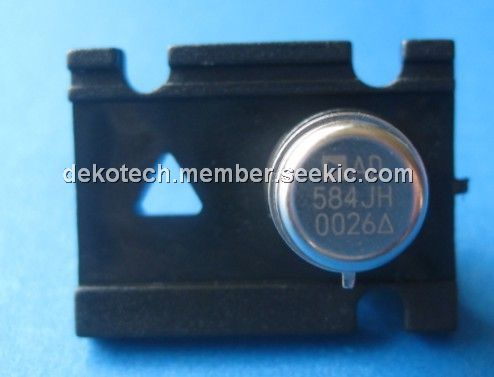

AD584JH

eight-terminal precision voltage reference, TO-99-8, 10V, 1.0 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~4.00

PartNumber:: AD584JH

Brand:: Analog Devices - ADI | Pack: CAN | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eima's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:AD584JH
US $3.00 - 4.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD584JH is an eight-terminal precision voltage reference offering pin-programmable selection of four popular output voltages: 10.000 V, 7.500 V, 5.000 V and 2.500 V. Other output voltages, above, below or between the four standard outputs, are available by the addition of external resistors. Input voltage of the AD584JH may vary between 4.5 and 30 volts. The AD584JH is recommended for use as a reference for 8-, 10- or 12-bit D/A converters which require an external precision reference. The AD584JH is also ideal for all types of A/D converters of up to 14-bit accuracy, either successive approximation or integrating designs, and in general can offer better performance than that provided by standard self-contained references.

Parametrics

AD584TH absolute maximum ratings: (1)Input Voltage VIN to Ground: 40 V; (2)Power Dissipation @ +25℃: 600 mW; (3)Operating Junction Temperature Range:–55 to +125℃; (4)Lead Temperature (Soldering 10 sec): +300℃; (5)Thermal Resistance Junction-to-Ambient (H-08A): 150℃/W.

Features

AD584TH features: (1)Four Programmable Output Voltages: 10.000 V, 7.500 V, 5.000 V, 2.500 V; (2)Laser-Trimmed to High Accuracies; (3)No External Components Required; (4)Trimmed Temperature Coefficient: 15 ppm/℃ max, –55 to +125℃; (5)Zero Output Strobe Terminal Provided; (6)Two Terminal Negative Reference Capability (5 V & Above); (7)Output Sources or Sinks Current; (8)Low Quiescent Current: 1.0 mA max; (9)10 mA Current Output Capability; (10)MIL-STD-883 Compliant Versions Available.
