XC9572-7PC84C

CPLD, 72 MCELL C-temp, 84-PLCC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.35~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.35~3.50

PartNumber:: XC9572-7PC84C

Brand:: Xilinx, Inc - Xilinx | Pack: PLCC | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eima's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-11

From Other Seller

Part Number:XC9572-7PC84C
US $3.35 - 3.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

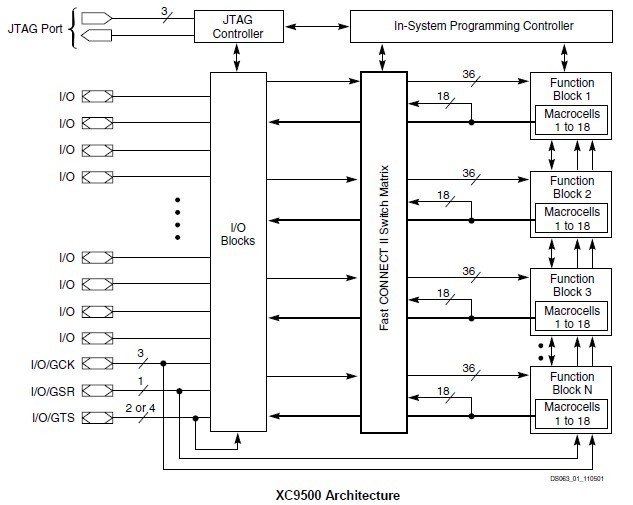

The XC9572-7PC84C is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of four 36V18 Function Blocks, providing 1,600 usable gates with propagation delays of 7.5 ns. The XC9572-7PC84C architectural features address the requirements of in-system programmability. Enhanced pin-locking capability avoids costly board rework.

Parametrics

Absolute maximum ratings: (1)Supply voltage relative to GND, VCC: -0.5 to 7.0V; (2)DC input voltage relative to GND, VIN: -0.5 to VCC+0.5V; (3)Voltage applied to 3-state output with respect to GND, VTS: -0.5 to VCC+0.5V; (4)Storage temperature, TSTG: -65 to +150℃; (5)Max soldering temperature (10s at 1/16 in = 1.5 mm), TSOL: +260℃.

Features

Features: (1)7.5 ns pin-to-pin logic delays on all pins; (2)fCNT to 125 MHz; (3)72 macrocells with 1,600 usable gates; (4)Up to 72 user I/O pins; (5)Enhanced pin-locking architecture; (6)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (7)Programmable power reduction mode in each macrocell; (8)Slew rate control on individual outputs; (9)User programmable ground pin capability; (10)Extended pattern security features for design protection; (11)High-drive 24 mA outputs; (12)3.3 V or 5 V I/O capability; (13)Advanced CMOS 5V FastFLASH technology; (14)Supports parallel programming of more than one XC9500 concurrently; (15)Available in 44-pin PLCC, 84-pin PLCC, 100-pin PQFP and 100-pin TQFP packages.
