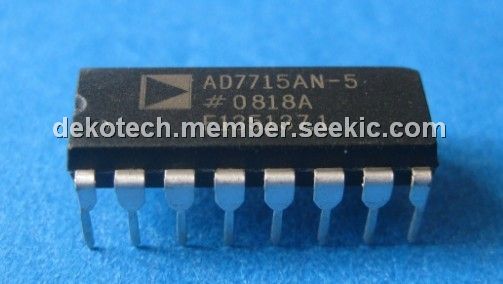

AD7715AN-5

complete analog front end, 5V, 16-DIP, 450μA, 16-Bit, AD7715AN-5

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.68~5.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.68~5.50

PartNumber:: AD7715AN-5

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eima's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:AD7715AN-5
US $4.68 - 5.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

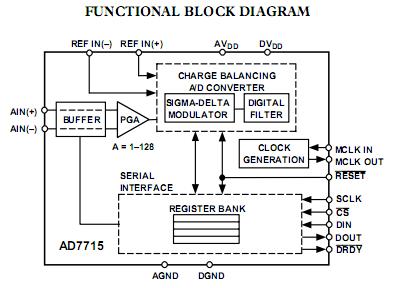

Product Summary

The AD7715AN-5 is a complete analog front end for low frequency measurement applications. It employs a sigma-delta conversion technique to realize up to 16 bits of no missing codes performance. The AD7715AN-5 features a differential analog input as well as a differential reference input. The device thus performs all signal conditioning and conversion for a single-channel system. The AD7715AN-5 is ideal for use in smart, microcontroller or DSP based systems. It features a serial interface that can be configured for three-wire operation.

Parametrics

AD7715AN-5 absolute maximum ratings: (1)AVDD to AGND:-0.3 V to +7 V; (2)AVDD to DGND:-0.3 V to +7 V; (3)AVDD to DVDD:–0.3 V to +7 V; (4)DVDD to AGND:–0.3 V to +7 V; (5)DVDD to DGND:–0.3 V to +7 V; (6)DGND to AGND:–0.3 V to +7 V; (7)Analog Input Voltage to AGND:–0.3 V to AVDD + 0.3 V; (8)Reference Input Voltage to AGND:–0.3 V to AVDD + 0.3 V; (9)Digital Input Voltage to DGND:–0.3 V to DVDD + 0.3 V; (10)Digital Output Voltage to DGND:–0.3 V to DVDD + 0.3 V; (11)Operating Temperature Range: Commercial (A Version):–40℃ to +85℃; (12)Storage Temperature Range:–65℃ to +150℃; (13)Junction Temperature:+150℃; (14)Power Dissipation (Any Package) to +75℃:450 mW; (15)ESD Rating:＞4000 V.
