Product Summary
The mhw916 is an amplifier. The mhw916 is designed specifically for the European Digital Extended Group Special Mobile (GSM) Base Station applications in the 925–960 MHz frequency range. operates from a 26 Volt supply and requires 15.5 dBm of RF input power.
Parametrics
MHW916 absolute maximum ratings:(1)DC Supply Voltage :28 Vdc; (2)DC Bias Voltage :16 Vdc; (3)RF Input Power : 19 dBm; (4)RF Output Power :25 W; (5)Operating Case Temperature Range : – 5.0 to +85 °C; (6)Storage Temperature Range : – 30 to +100 °C; (7)Standby Current (Pin Removed, Istdby = IS1 + IS2) : 400 mA.
Features
MHW916 features:(1)TC = 25°C; (2)VS1 = VS2 = 26 Vdc; (3)Vbias = 15 Vdc; (4)50 ohm system.

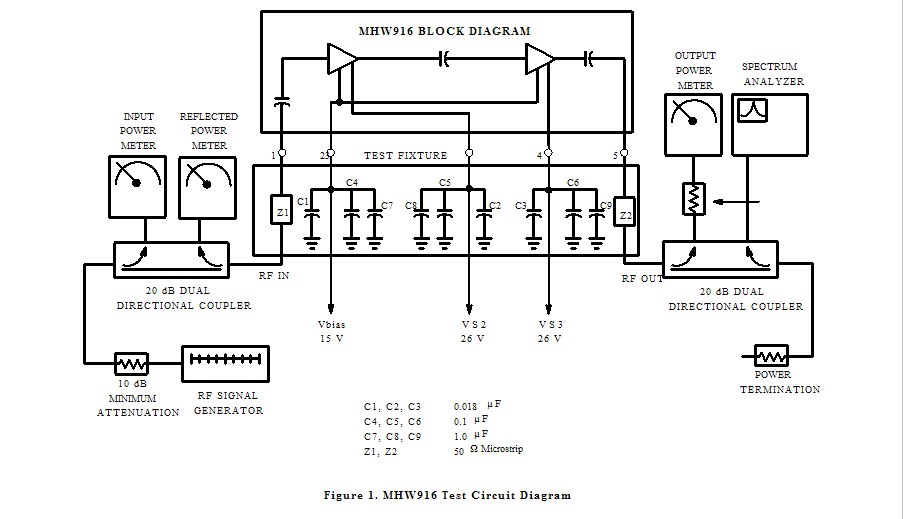

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW916 |
Other |
|
Data Sheet |
Negotiable |
|
||||
