Product Summary

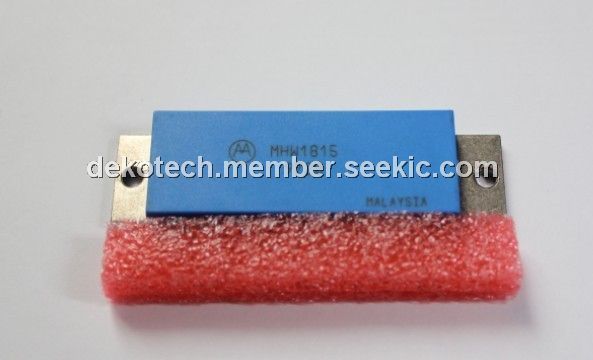

The MHW1815 is a Microwave Bipolar Power Amplifier.
Parametrics
MHW1815 absolute maximum ratings: (1)DC Supply Voltage : 28 Vdc; (2)DC Bias Voltage: 5.5 Vdc; (3)RF Input Power: 17 dBm; (4)RF Output Power: 23 W; (5)Operating Case Temperature Range: –30 to +85 ℃ ; (6)Storage Temperature Range: –30 to +100 ℃.
Features
MHW1815 features : (1)Frequency Range : min 1805mhz ;max 1880 MHz; (2)Total Quiescent Current (Pin = 0 mW) : typ300 mA; (3)Power Gain (Pout = 15 W) (1) : min30db , typ 32db ; (4)Output Power at 1 dB Compression: min 15 Watts; (5)Efficiency (1 dB Compression Power) : min25 %; (6)Input VSWR (Pout = 15 W) : 2:1; (7)Ripple (Pout = 15 W) : typ 1 dB; (8)Load Mismatch Stress (Pout = 15 W; Load VSWR = 3:1; at All Phase Angles) : No Degradation in Output Power; (9)Stability (Pout = 1 mW – 15 W; Load VSWR = 2:1; at All Phase Angles except Harmonics) : All Spurious Outputs ;More than 60 dB ;Below Desired Signal; (10)Stability (Pout = 1 mW – 15 W; Load VSWR = 2:1; f = 1805 – 1880 MHz; at All Phase Angles):All Spurious Typically,Lower than –36 dBm.

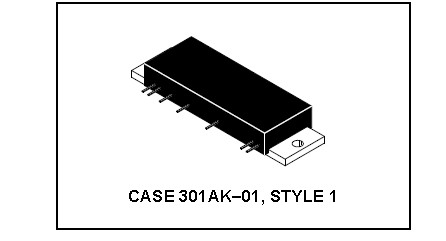

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW1815 |
Other |
|
Data Sheet |
Negotiable |
|
||||
