IRG4PH40UDPBF

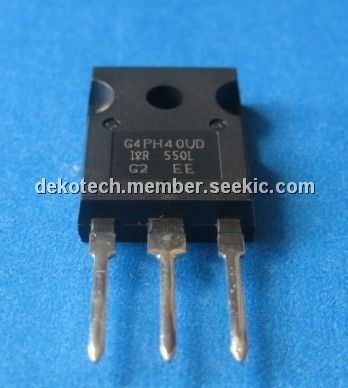

insulated gate bipolar transistor, 1200V, 30A, TO247AC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.15~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.15~2.50

PartNumber:: IRG4PH40UDPBF

Brand:: International Rectifier - IR | Pack: TO | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eima's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-11

From Other Seller

Part Number:IRG4PH40UDPBF
US $2.15 - 2.50
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRG4PH40UDPBF is an insulated gate bipolar transistor with ultrafast soft recovery diode.

Parametrics

IRG4PH40UDPBF absolute maximum ratings: (1)VCES Collector-to-Emitter Breakdown Voltage: 1200 V; (2)IC @ TC = 25℃ Continuous Collector Current: 41 V; (3)IC @ TC = 100℃ Continuous Collector Current: 21 V; (4)ICM Pulsed Collector Current: 82 A; (5)ILM Clamped Inductive Load Current: 82 A; (6)IF @ TC = 100℃ Diode Continuous Forward Current: 8.0 A; (7)IFM Diode Maximum Forward Current: 130 A; (8)VGE Gate-to-Emitter Voltage: ±20 V; (9)PD @ TC = 25℃ Maximum Power Dissipation: 160 W; (10)PD @ TC = 100℃ Maximum Power Dissipation: 65 W; (11)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 150 ℃; (12)Soldering Temperature, for 10 seconds: 300 ℃(0.063 in. (1.6mm) from case ).

Features

IRG4PH40UDPBF features: (1)UltraFast: Optimized for high operating frequencies up to 40 kHz in hard switching, >200 kHz in resonant mode; (2)New IGBT design provides tighter parameter distribution and higher efficiency than previous generations; (3)IGBT co-packaged with HEXFRED ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations; (4)Industry standard TO-247AC package; (5)Lead-Free.
