Product Summary

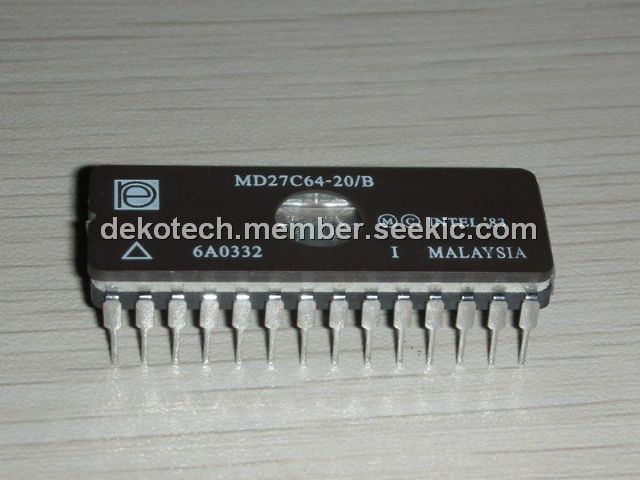

The Intel MD27C64-20/B is a 5v only, 65,536-bit ultraviolet erasable and electrically programmable read-only memory(EPROM). It employs advanced CHMOS II-E circuitry for systems requiring low power, high performance speeds, and immunity to noise.
Parametrics
Absolute maximum ratings: (1)case temperature under bias: -55℃ to +125℃; (2)storage temperature OTP products:-65℃ to +150℃; (3)all input or output voltages with respect to ground: +13.5v to -2.0v; (4)Vpp supply voltage with respect to ground during programming: +14v to -2.0v.
Features
Features: (1)fast acess times: 200ns; (2)CHMOS II-E technology; (3)extremely low power consumption: 25mA maximum active; 140uA maximum standby; (4)two-line control; (5)fast programming: inteligent programming algorithm; quick-pulse programming algorithm; (6)inteligent identifier mode: automated programming operations; (7)compatible with MD27C64; (8)maximum latch-up immunity; (9)military temperature range: -55℃ to + 125℃ (Tc).

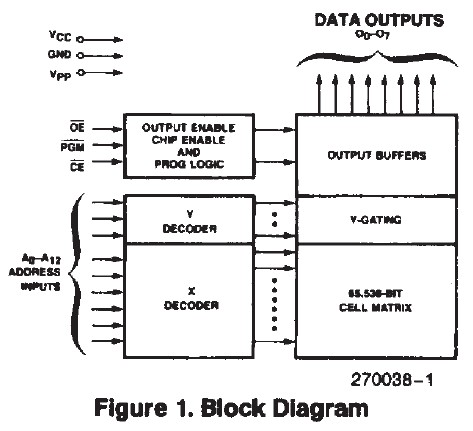

Diagrams
 |
