Product Summary

The LM13700N is a Dual Operational Transconductance Amplifier with Linearizing Diodes and Buffers. It consists of two current controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers of the LM13700N share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10 dB signal-to-noise improvement referenced to 0.5 percent THD. The applications of the LM13700N include: Current-controlled amplifiers, Current-controlled impedances, Current-controlled filters, Current-controlled oscillators, Multiplexers, Timers, Sample-and-hold circuits.

Parametrics

LM13700N absolute maximum ratings: (1)Supply Voltage: 36 VDC or ±18V; (2)Power Dissipation TA = 25℃: 570 mW; (3)Differential Input Voltage: ±5V; (4)Diode Bias Current (ID): 2mA; (5)Amplifier Bias Current (IABC): 2mA; (6)Output Short Circuit Duration: Continuous; (7)Buffer Output Current: 20 mA; (8)Operating Temperature Range: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +150℃.

Features

LM13700N features: (1)gm adjustable over 6 decades; (2)Excellent gm linearity; (3)Excellent matching between amplifiers; (4)Linearizing diodes; (5)High impedance buffers; (6)High output signal-to-noise ratio.

Diagrams

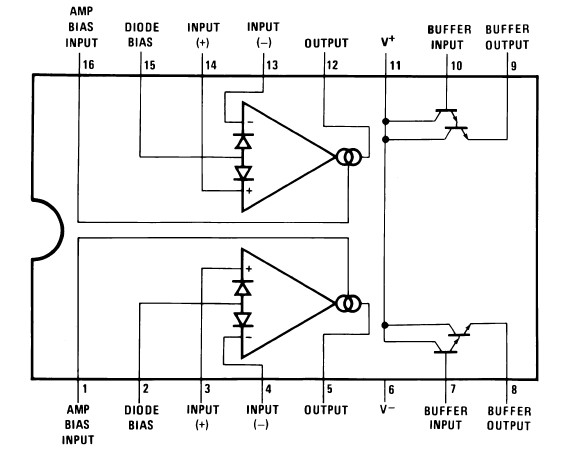

LM13700N diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM13700N
LM13700N

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-475: $0.92
475-500: $0.67
500-1000: $0.55
1000-2500: $0.52
LM13700N/NOPB
LM13700N/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1: $1.19
1-25: $0.95
25-100: $0.86
100-250: $0.76
