Product Summary

The SED1335F00A1 is a controller IC that can display text and graphics on LCD panel. It can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The SED1335F00A1 stores text, character codes and bitmapped graphics data in external frame buffer memory. It has an internal character generator with 160, 5 × 7 pixel characters in internal mask ROM

Parametrics

Absolute maximum ratings: (1)VDD, Supply voltage range: –0.3 to 7.0 v; (2)VIN, Input voltage range: –0.3 to VDD + 0.3 v; (3)PD, Power dissipation: 300 mW ; (4)Topr, Operating temperature range: –20 to 75 ℃ ; (5)Tstg, Storage temperature range: -60to+150 ℃ ; (6)Tsolder, Soldering temperature (10 seconds): 260 ℃.

Features

Features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)Up to 640 256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)1/2-duty to 1/256-duty LCD drive; (7)Up to 640 256 pixel LCD panel display resolution memory; (8)160, 5 7 pixel characters in internal mask-programmed character generator ROM; (9)Up to 64, 8 16 pixel characters in external character generator RAM; (10)Up to 256, 8 16 pixel characters in external character generator ROM; (11)6800 and 8080 family microprocessor interfaces; (12)Low power consumption.5 mA operating current (VDD = 3.5V), 0.05 mA standby current; (13)Package: QFP6-60 pin.

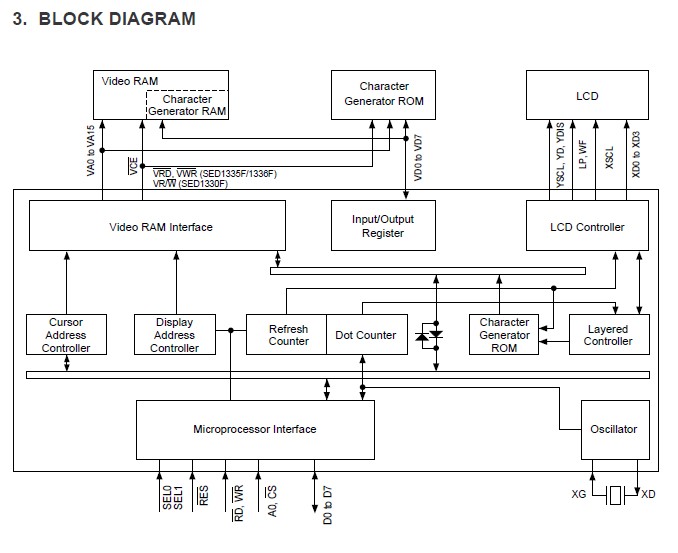

Diagrams
