Product Summary

The MW7IC2750NBR1 is a RF Power Field Effect Transistor. It is designed for WiMAX base station applications with frequencies up to 2700 MHz. The MW7IC2750NBR1 is suitable for WiMAX, WiBro, BWA, and OFDM multicarrier Class AB and Class C amplifier applications.

Parametrics

MW7IC2750NBR1 absolute maximum ratings: (1)Drain-Source Voltage VDS: -0.5,+65 Vdc; (2)Gate-Source Voltage VGS: -6.0, +10 Vdc; (3)Operating Voltage VDD: 32, +0 Vdc; (4)Storage Temperature Range Tstg: - 65 to +150 ℃; (5)Case Operating Temperature TC: 150 ℃; (6)Operating Junction Temperature TJ: 225 ℃; (7)Input Power Pin: 13 dBm.

Features

MW7IC2750NBR1 features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source Parameters; (2)On-Chip Matching (50 Ohm Input, DC Blocked); (3)Integrated Quiescent Current Temperature Compensation with Enable/Disable Function; (4)Integrated ESD Protection; (5)Greater Negative Gate-Source Voltage Range for Improved Class C Operation; (6)225℃ Capable Plastic Package; (7)RoHS Compliant; (8)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

Diagrams

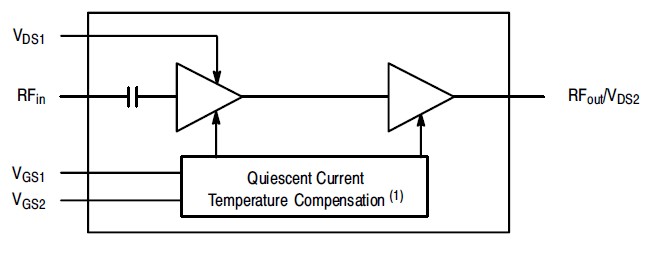

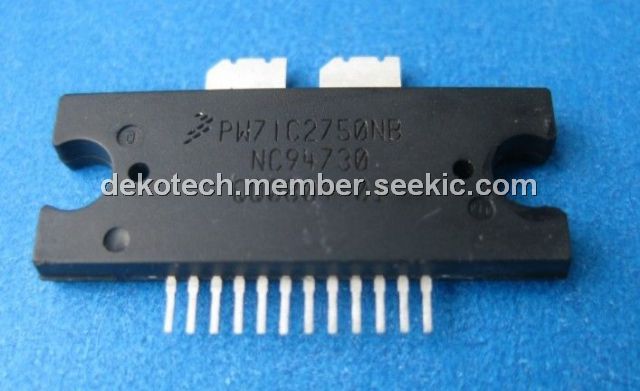

MW7IC2750NBR1 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MW7IC2750NBR1
MW7IC2750NBR1
Freescale Semiconductor
RF Amplifier HV7 2700MHZ TO272WB14
Data Sheet
0-271: $39.27
271-500: $28.33
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MW7IC008NT1
MW7IC008NT1
Freescale Semiconductor
RF Amplifier HV7 900MHZ 8W PQFN8X8
Data Sheet
0-445: $9.80
445-500: $8.72
500-1000: $5.81
MW7IC18100GNR1
MW7IC18100GNR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
Negotiable
MW7IC18100NBR1
MW7IC18100NBR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
MW7IC18100NR1
MW7IC18100NR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
MW7IC2020NT1
MW7IC2020NT1
Freescale Semiconductor
RF Amplifier HV7IC 2GHz 20W PQFN8X8
Data Sheet
0-446: $19.00
446-500: $16.91
500-1000: $11.27
MW7IC2040GNR1
MW7IC2040GNR1
Freescale Semiconductor
RF Amplifier HV7 1990MHz WB16 Gull Wing
Data Sheet
0-271: $27.33
271-500: $19.71
