Product Summary

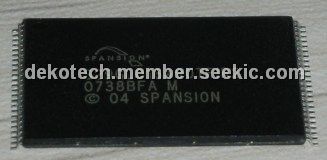

The S29GL016A90TFIR2 is a 3.0 V single power Flash memory manufactured using 200 nm MirrorBit technology. It is a 16 Mb device organized as 1,048,576 words or 2,097,152 bytes.
Parametrics
Absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V; A9, OE#, ACC and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; Output Short Circuit Current: 200 mA.
Features
Software & Hardware Features: (1)Program Suspend & Resume: read other sectors before programming operation is completed; (2)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (3)Data# polling & toggle bits provide status; (4) CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash; (5)devices; (6) Unlock Bypass Program command reduces overall multiple-word programming time; (7)Sector Group Protection: hardware-level method of preventing write operations within a sector group; (8)Temporary Sector Unprotect: VID-level method of charging code in locked sectors; (9)WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings on uniform sector models Hardware reset input (RESET#) resets device; (10)Ready/Busy# output (RY/BY#) detects program or erase cycle completion.

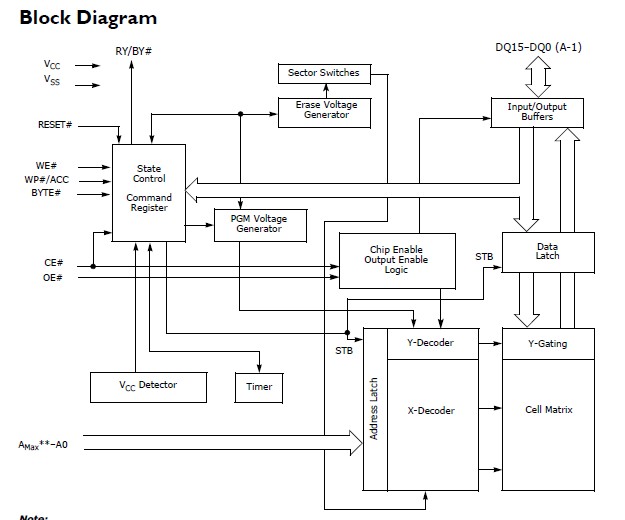

Diagrams
 |
