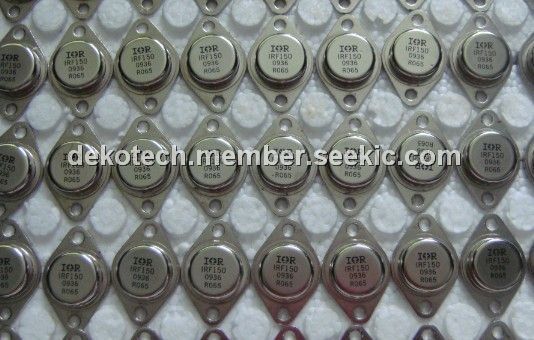

IRF150

IRF150, N–CHANNEL POWER MOSFET, 100V, 0.055ohm, 38A, TO-204AA/AE

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.20

PartNumber:: IRF150

Brand:: International Rectifier - IR | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Eima's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-24

From Other Seller

Part Number:IRF150
US $1.50 - 2.20
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF150 is an N–Channel power mosfet. The IRF150 technology is the key to International Rectifier’s advanced line of power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode recovery dv/dt capability. The IRF150 also features all of the well established advantages of MOSFETs such as voltage control, very fast switching, ease of paralleling and temperature stability of the electrical parameters. Applications of the the IRF150 such as switching power supplies, motor controls, inverters, choppers, audio amplifiers and high energy pulse circuits.

Parametrics

IRF150 absolute maximum ratings :(1)ID ＠ VGS = 10V, TC = 25℃ Continuous Drain Current 38A; (2)ID ＠VGS = 10V, TC = 100℃ Continuous Drain Current 24A; (3)IDM Pulsed Drain Current① 152A; (4)PD ＠TC = 25℃ Max. Power Dissipation 150 W; (5)Linear Derating Factor 1.2 W/℃; (6)VGS Gate-to-Source Voltage ±20 V; (7)EAS Single Pulse Avalanche Energy ②150 mJ; (8)IAR Avalanche Current ①38 A; (9)EAR Repetitive Avalanche Energy ① 15 mJ; (10)dv/dt Peak Diode Recovery dv/dt ③ 5.5 V/ns; (11)TJ Operating Junction -55 to 150℃; (12)TSTG Storage Temperature Range; (13)Lead Temperature 300℃ (0.063 in. (1.6mm) from case for 10s); (14)Weight 11.5 g(typical) .

Features

IRF150 features :(1)Repetitive Avalanche Ratings; (2)Dynamic dv/dt Rating; (3)Hermetically Sealed; (4)Simple Drive Requirements; (5)Ease of Paralleling.
