Product Summary

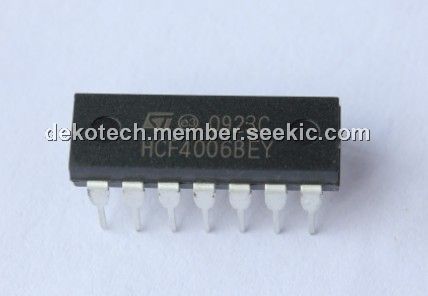

The HCF4006BEY is a 18-stage static shift register. It is available in 14-lead dual in-line plastic or ceramic package and plastic micro package. The HCF4006BEY is comprised of 4 separate “shift register” sections; two sections of four stages and twosections of five stageswith an output tap at the fourth stage. Each section has an independent “single rail” data path. A commonclock signal is used for all stages. To facilitate cascading stages when clock rise and fall times of the HCF4006BEY are slow, an optional output that is delayed one-half clock-cycle, is provided.
Parametrics
HCF4006BEY absolute maximum ratings: (1)VDD Supply Voltage: –0.5 to + 18 V; (2)Vi Input Voltage: –0.5 to VDD + 0.5 V; (3)II DC Input Current (any one input): ±10 mA; (4)Pt ot Total Power Dissipation (per package): 200 mW; Dissipation per Output Transistor for Top = Full Package-temperature Range: 100 mW; (5)To p Operating Temperature: –40 to + 85 ℃; (6)Ts tg Storage Temperature: -65 to + 150 ℃.
Features
HCF4006BEY features: (1)permanent register storage with clock line high or low, no information recirculation required; (2)fully static operation; (3)shiftingrates up to 12mhz@ 10v (typ.); (4)standardized symmetrical output characteristics; (5)quiescent current specified to 20v for hcc device; (6)input current of 100na at 18v and 25℃ for hcc device; (7)100% testedfor quiescent current; (8)5v, 10v, and 15v parametric rating.

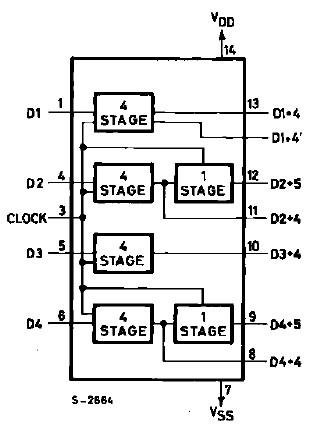

Diagrams
 |
